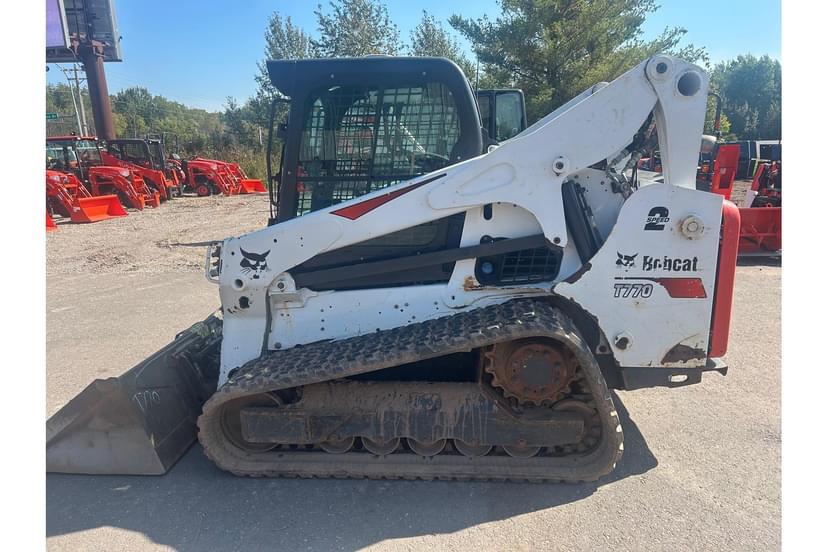

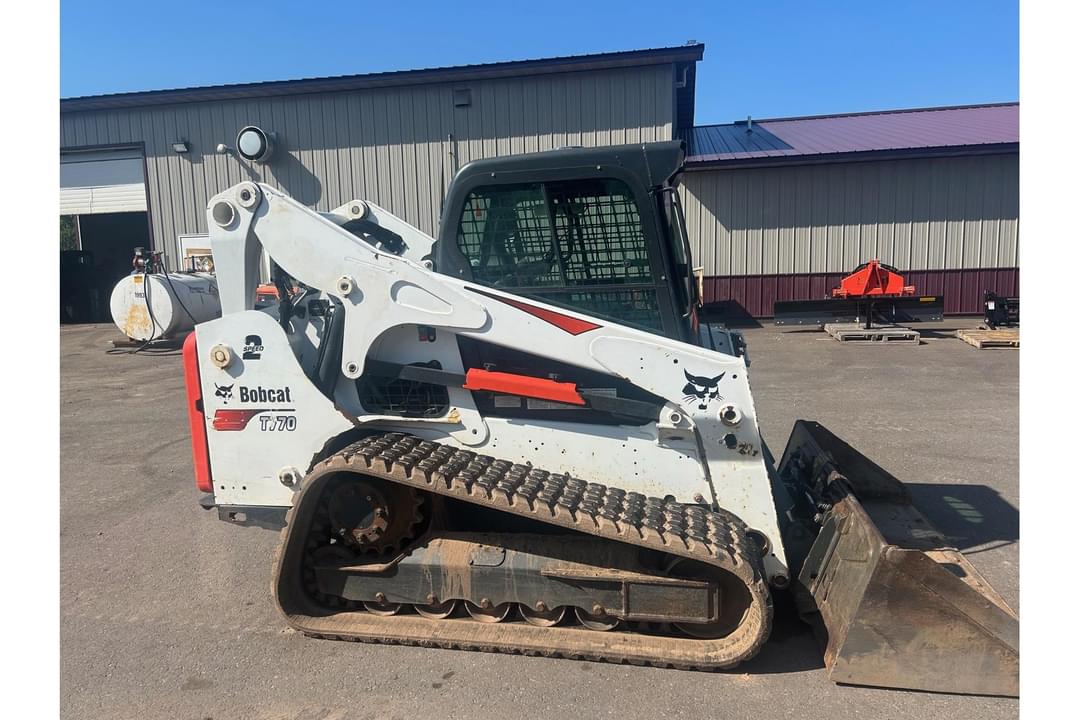

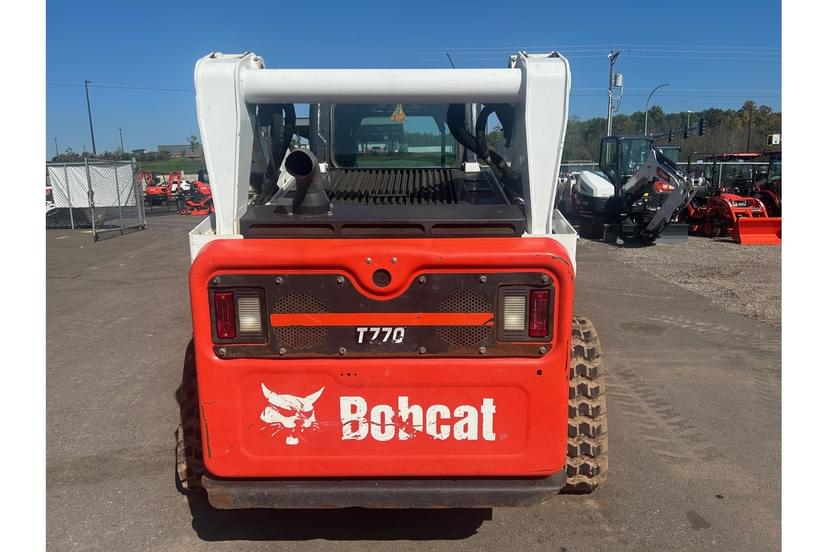

Bobcat T770

Description

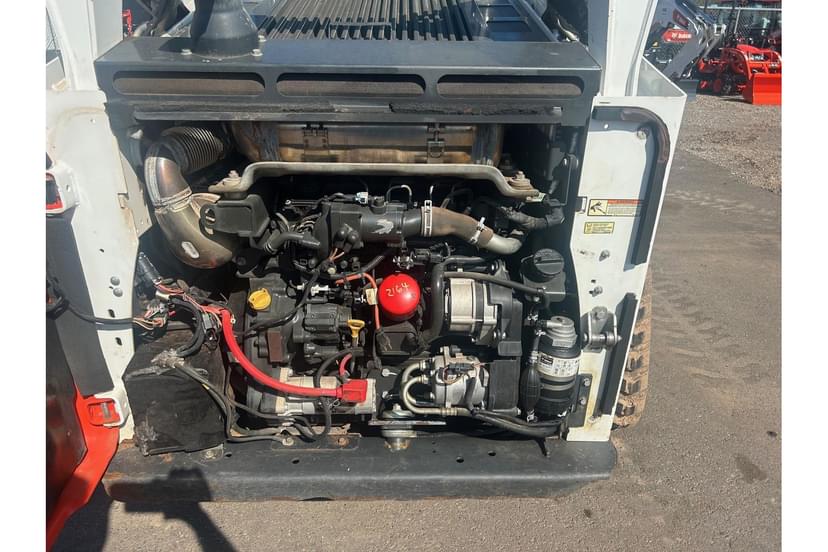

With 11 ft. of vertical lift, the Bobcat® T770 compact track loader is primed for loading trucks, grinders and hoppers as well as many other jobs. The vertical lift path allows you to easily place cargo and tackle demanding tasks. The T770 is a Tier 4 model. Engine Specifications Emissions Tier (EPA): Tier 4 Engine Cooling: Liquid Engine Fuel: Diesel Horsepower: 92 hp (68.6 kW) Turbocharged Engine: Optional Performance Specifications Rated Operating Capacity (SAE): 3,475 lb. (1576 kg) Operating Capacity (50% of Tip): 4960 lb. (2250 kg) Tipping Load: 9929 lb. (4504 kg) Operating Weight: 10465 lb. (4747 kg) Travel Speed: 6.6 mph (10.6 km/h) Travel Speed (2-speed option): 10.7 mph (17.2 km/h) Ground Pressure (Rubber): 4.2 psi (0.29 bar) Capacities Fuel Tank: 43.9 gal. (166.2 L) Hydraulic System Specifications System Relief @ Quick Couplers: 3,500 psi (241.32 bar) Auxiliary Std Flow: 23 gal./min (87.1 l/min) Auxiliary High Flow: 36.6 gal./min (138.5 l/min) Dimensions Length: 141.6 in. (3597 mm) Length without Attachment: 114.3 in. (2903 mm) Length with Standard Bucket: 141.6 in. (3597 mm) Width: 78 in. (1981 mm) Width (with bucket): 80 in. (2032 mm) Height: 81.3 in. (2065 mm) Height with Operator Cab: 81.3 in. (2065 mm) Height to Bucket Hinge Pin: 132 in. (3353 mm) Reach @ Maximum Height: 33.6 in. (853 mm) Turning Radius: 88 in. (2235 mm) Length of track on ground: 63.7 in. (1618 mm) Track Width: 17.7 in. (450 mm) Features Joystick Control: Optional Air Conditioning: Optional Bac
